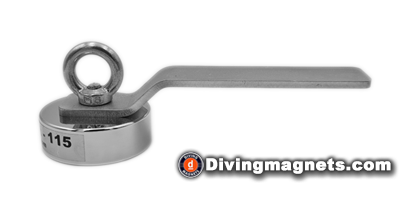

60mm diameter Neodymium Pot Magnet, Handle and Eye Nut
Product Code: DMS115-CS/P
The Diver Magnet - 115 is ideally used during light work, like inspections or hull surveys under vessels such as FPSO’s and FSO’s or other structures like SBM’s where only basic inspection equipment is attached to the diver and where the diver is constantly moving or swimming to different locations for example weld inspections.
The Diver Magnet - 115 consists of a super strong neodymium pot magnet to provide a secure hold, a stainless steel eye nut for clipping in tools and lanyards and a stainless steel handle for a good grip to hang off and for a much needed leverage to detach the magnet once the full force is in place
Pot Magnet Size:
60mm diameter x 21mm thickness with an 8 mm counter bored hole for fixings.
Each magnet can support a weight of up to 115kg vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness
170mm x 28mm x 3mm (316 Stainless Steel)
Eye bolt size:
M8, internal diameter of the eyebolt is 20mm and is 36mm from base collar to top.
